OBJ Exporter SolidWorks (V 3.0)


Updated Date: 3rd-August-2017.
Version Supported: SolidWorks 2010, 2011, 2012, 2013, 2014, 2015, 2016 and 2017 (Both Win 32 and 64 bit).

Do you want to export your SolidWorks model to an open file format which is universally accepted? You should try exporting your Solidworks model to OBJ. OBJ (or .OBJ) is a geometry definition file format first developed by Wavefront Technologies. The file format is open and has been adopted by other 3D graphics application vendors. For the most part it is a universally accepted format.

Our OBJ Exporter For SolidWorks supports both face-level and body-level material (color and texture). Option has been provided to control the file size and quality by specifying precision value. Increasing precision value will increase the fineness and accuracy of the model as well as the file size. You can choose whether you want to tessellate at the body-level or face- level.

Note: To know how the automation license works and can be activated, please check the details here.

For activation or any query, please contact at: support@prototechsolutions.com


Trial Download

Fill the form to Download

OBJ Exporter for SolidWorks
Version Release Date What’s new
3.0 08/03/2017 1.Added support of Solidworks 2017
1.7 1. Changed license activation process.
1.6 07/13/2015 1. Licensing issue solved.

You can try the plugin for 10 times for free. After that you need to activate the product.
For any query or activation, please contact at support@ProtoTechSolutions.com.
We are not supporting the scaled textures in this version. Default textures are supported.

  • The license is tied to one piece of hardware (machine). Once activated this license cannot be transferred to another machine.
  • Your product activation key will be sent via email as soon as you complete the payment process.
  • The activation will require internet connection. The internet connection is required only once for activation.
  • If the machine is formatted for any reason, the license will have to be reactivated.
  • The license is perpetual only for the downloaded version on the hardware which it is activated. While the current policy is to allow the updates for free, this may change in the future.
  • While we will try to provide technical support, there are no committed warranties and support. We recommend that you evaluate our product to your satisfaction based on the 10 free exports provided before making the purchase.

How To Use OBJ Exporter For SolidWorks® :

  • Download and install OBJ Exporter plugin for SolidWorks®.

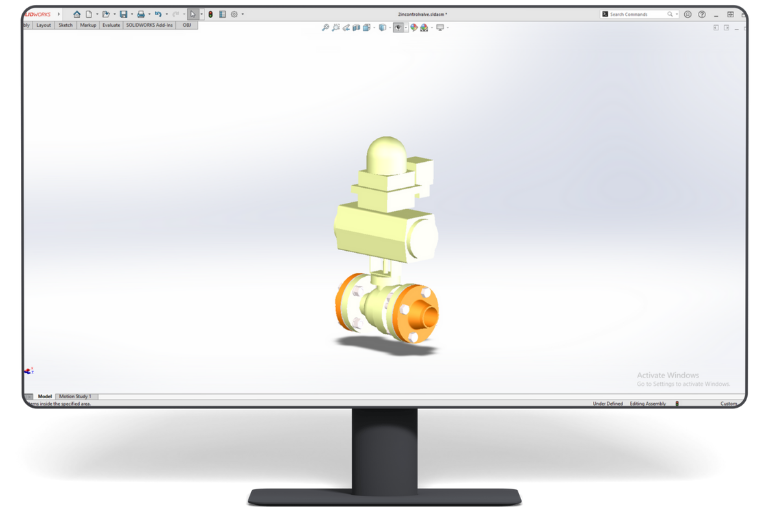

  • Run SolidWorks® and Load a model (part or assembly).
  • There’s a new tab on ribbon bar named as ‘OBJ‘.

It contains following three menu items as shown in the image below:

Step 1 Step 2 Step 3

This plugin available on Autodesk store too click here.

Write us

Contact Us

Automation and Scripting License for Standalone PCs

  • A special ‘automation’ license feature is available for this plugin. With this license, you will be able to call a function from your plugin (on the same host application) and export the file without requiring a user intervention. Advantages are
    1. You can provide a seamless file export experience to the users of your plugin
    2. You can provide standard input parameters for export and avoid GUI.
  • The cost of this license is 129 USD.
  • If interested please contact us at support@ProtoTechSolutions.com
